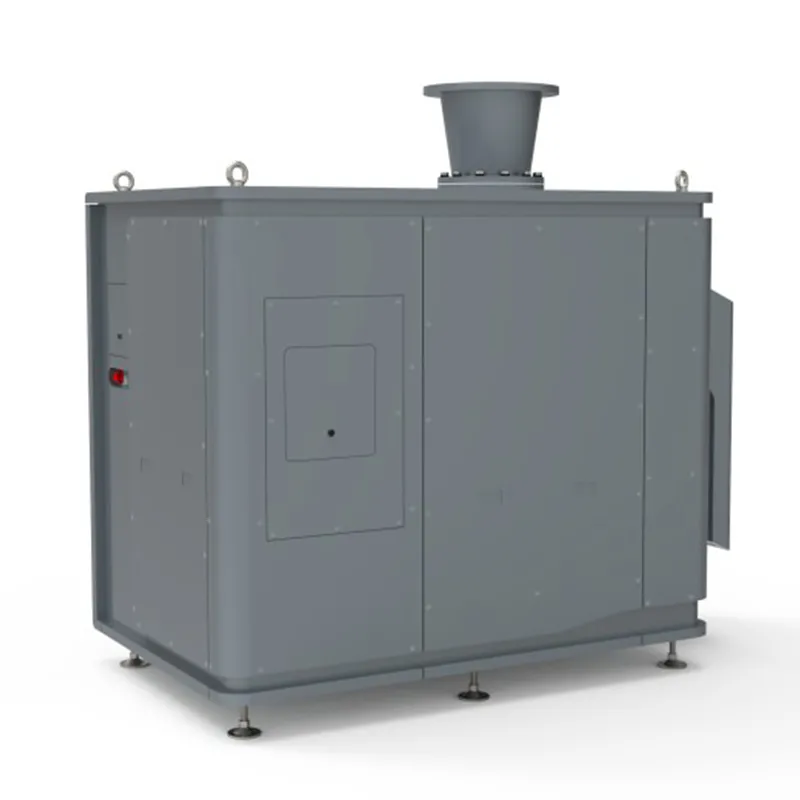

HE

Features:

The latest superior efficiency blower based on 3rd generation air bearing technology, with water-cooling PM motor and controller, Standard for outdoor application.

Unparalleled Flow Capacity

Engineered to handle the widest range of air volumes request, maximum 54,000m³/hr air flow capacity of single unit, with 1,000kW output power.
Unmatched Energy Efficiency

Combining the 3rd generation air bearing technology, optimized aerodynamic impeller, ultra-premium high efficiency (IE5) water-cooling PM motor, and VFD control, increased the nominal blower efficiency up to78%.
100% Oil-Free Air

Utilizing air bearing to eliminate the need for oil lubrication and ensure contaminant-free air, to meet ISO 8573-1:2010 Class 0 air quality standards.
Ease of Maintenance

Peace of mind in service, the only regular air filter replacement saves your labor & material cost dramatically.
Excellent Turndown Ratio

The air flow range of blower can be automatically adjusted between 40%-100% under constant pressure condition, to ensure the best system efficiency and energy conservation.
High Ambient Operation

Compared with the 45℃ operating alarm temperature of traditional blower, HE series can operate under a higher temperature environment of 55℃.
Customized Flexibility

Depending on the specific application, we can offer 6kV/10kV high voltage as options.

HE Series	Free Air Delivery (m³/min)
HE Series	40 kPa	50 kPa	60 kPa	70 kPa	80 kPa	90 kPa	100 kPa	110 kPa	120 kPa
HE400	92	83	74	63	58	51	47	41	39
HE500	138	123	110	97	87	75	69	62	59
HE600	176	163	144	124	114	100	93	84	79
HE700	222	204	181	155	144	124	117	105	99
HE800	261	246	216	185	169	150	139	127	119
HE900	344	329	285	248	227	208	194	169	158
HE1000	400	379	332	275	247	230	213	189	177
HE 900H	344	329	285	248	227	208	194	169	158
HE 1000H	400	379	332	275	247	230	213	189	177
HE 1100H	/	/	453	396	359	324	298	270	248
HE 1200H	/	/	543	473	426	392	358	325	300
HE 1300H	/	/	719	639	570	519	483	430	405
HE 1400H	/	/	958	850	770	686	635	580	540

Model	HE400	HE500	HE600	HE700	HE800	HE900	HE1000
Pressure (kPa)	≤200	≤200	≤200	≤200	≤200	≤200	≤200
Rated Power (kW)	75	112	150	188	225	300	375
Weight (kg)	800	800	1830	1830	1830	2330	2330
LxWxH (mm)	1500x950x1050	1500x950x1050	2520x1550x2000	2520x1550x2000	2520x1550x2000	2840x1800x2150	2840x1800x2150

Model	HE 900H**	HE 1000H**	HE 1100H**	HE 1200H**	HE 1300H**	HE 1400H**
Pressure (kPa)	≤200	≤200	≤200	≤200	≤200	≤200
Rated Power (kW)	300	375	470	560	750	1000
Weight (kg)	6500	6500	6500	9500	9500	12000
LxWxH (mm)	3500x2600x3200	3500x2600x3200	3500x2600x3200	4300x2500x3200	4300x2500x3200	5500x2500x2800
