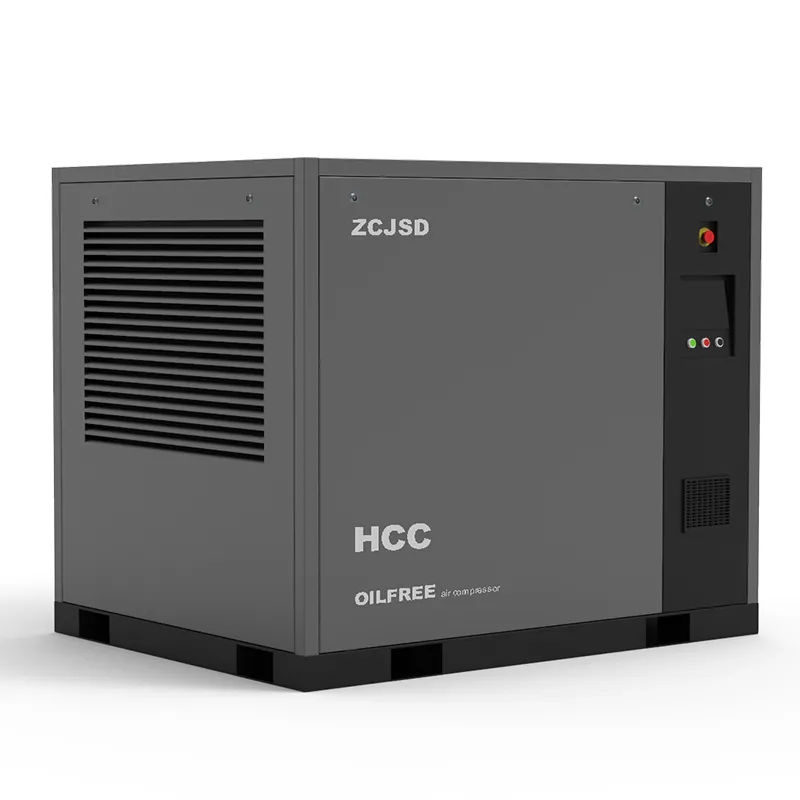

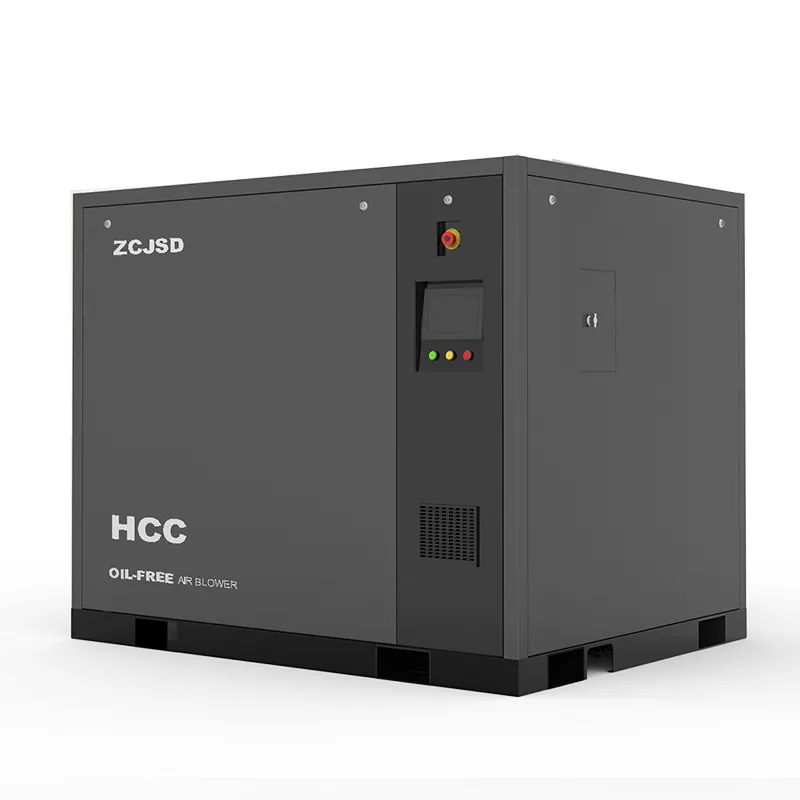

HCC

Features:

  • Unmatched Energy Efficiency

    Our in-house production of 4-stage compressor core, combines the 3rd generation air bearing technology, optimized aerodynamic impeller, ultra-premium high efficiency (IE5) water-cooling PM motor, and VFD control, will save your electricity cost up to 12%, compared to screw compressor.

  • 100% Oil-Free Compressed Air

    Utilizing air bearing to eliminate the need for oil lubrication and offer you 100% pure, clean air that complies with ISO 8573-1:2010 Class 0 standards, zero risk of contamination; zero risk of damaged products; zero risk of losses from operational downtime.

  • Highest Reliability

    The air suspension technology prevents mechanical wear of the shaft-related components, along with the use of mature and reliable water-cooled permanent magnet synchronous motors, leading a long mean time between failures (MTBF) to meet highest industrial standards.

  • Ease of Maintenance

    Peace of mind in service, the only regular air filter replacement saves your labor & material cost dramatically.

  • Eliminate High-temperature Effect

    The air suspension centrifugal air compressor generates little heat and uses liquid cooling for heat dissipation, completely solving the problem of high temperatures caused by the operation of air compressor in the M&E utility room.

  • High Ambient Operation

    Compared with the 45℃ operating alarm temperature of traditional air compressors, air suspension centrifugal air compressors can operate normally in a high-temperature environment of 55℃.
Inquire Now

SPECIFICATION

Model7 barg8 barg9 bargMotor PowerDimension(LxWxH)Weight
m³/hrcfmm³/hrcfmm³/hrcfmkWmmkg
HCC55758446720424659388551600x1200x1500900
HCC901010594960565879517901600x1200x15001000
HCC1321452855138081212637441321800x1400x15001600
HCC20017681040168098915389052001800x1400x15001700
HCC3003156185830001766274616163003300x1800x18004850
HCC4504103241539002295357021014503300x2200x18005100
HCC6006628390163003708576733946003500x2400x18005300
HCC7007575445972004238659138797003500x2400x18006100
HCC110013888817413200776912083711211004000x2800x20007200
HCC1500176761040416800988815379905215004000x2800x20007650
HCC190022726133762160012713197721163819004500x3000x20008600
